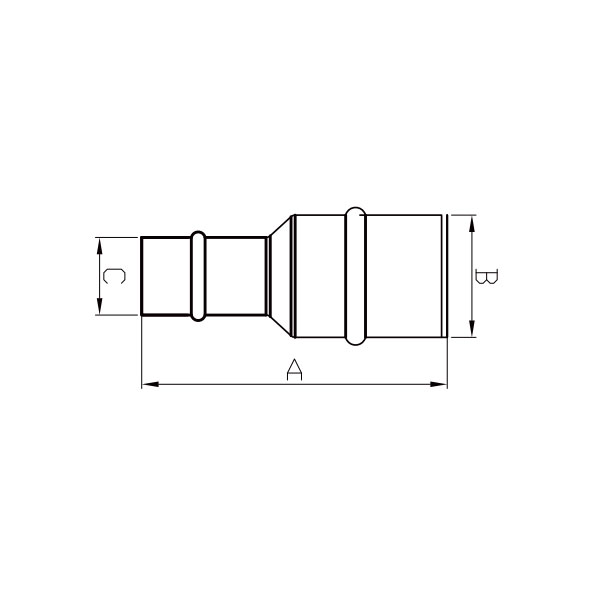

| Code | Specifications | A | B | C |
|---|---|---|---|---|
| 8080202520 | DN25*DN20 | 80.74 | 25.40 | 20.00 |
| 8080204020 | DN40*DN20 | 92.30 | 40.00 | 20.00 |
| 8080204025 | DN40*DN25 | 102.40 | 40.00 | 25.40 |
| 8080205020 | DN50*DN20 | 110.50 | 50.80 | 20.00 |
| 8080205025 | DN50*DN25 | 115.90 | 50.80 | 25.40 |
| 8080205040 | DN50*DN40 | 121.38 | 50.80 | 40.00 |
| 8080206325 | DN63*DN25 | 160.00 | 63.50 | 25.40 |
| 8080206340 | DN63*DN40 | 192.00 | 63.50 | 40.00 |
| 8080206350 | DN63*DN50 | 171.46 | 63.50 | 50.80 |
| 8080208040 | DN80*DN40 | 194.00 | 88.90 | 40.00 |
| 8080208050 | DN80*DN50 | 183.00 | 88.90 | 63.50 |
| 8080208063 | DN80*DN63 | 187.00 | 88.90 | 63.50 |
| 8080210040 | DN100*DN40 | 220.00 | 108.00 | 40.00 |
| 8080210050 | DN100*DN50 | 220.00 | 108.00 | 50.80 |
| 8080210063 | DN100*DN63 | 220.00 | 108.00 | 63.50 |
| 8080210080 | DN100*DN80 | 220.00 | 108.00 | 88.90 |
| 8080212510 | DN125*DN100 | 245.00 | 133.00 | 108.00 |
| 8080212580 | DN125*DN80 | 235.00 | 133.00 | 88.90 |
| 8080212563 | DN125*DN63 | 230.00 | 133.00 | 63.50 |
