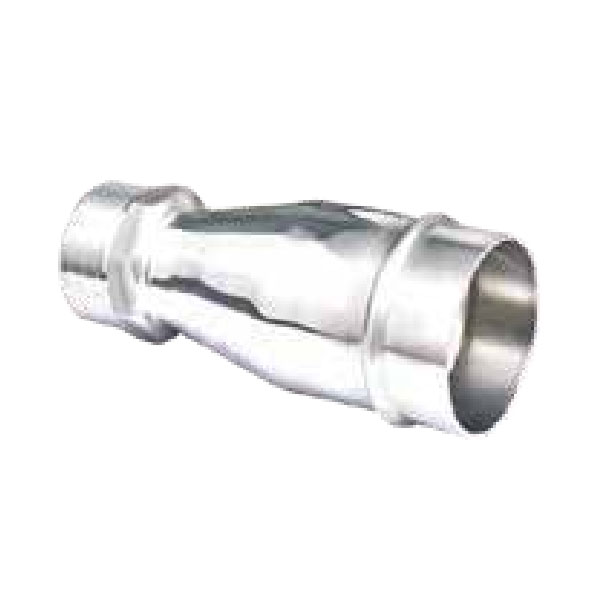

Outer filament

Outer filament

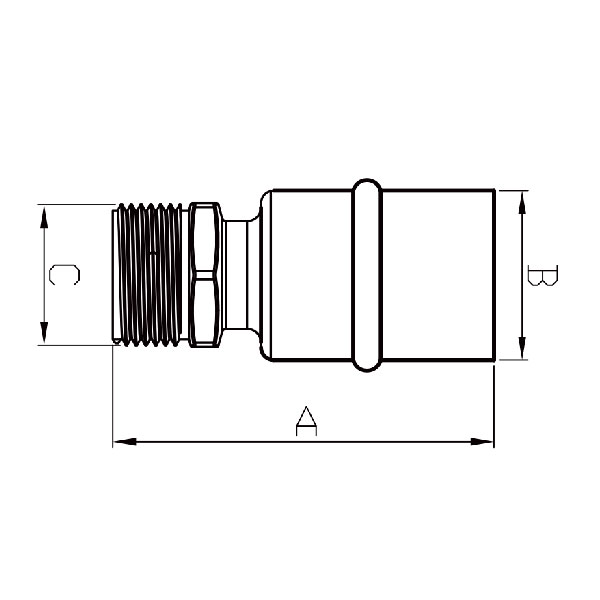

code	Size specifications	A	B	C
8080212015	DN20 * 1 / 2 "	55.00	20.00	R1 / 2 "
8080212515	DN25 * 1 / 2 "	70.74	25.40	R1 / 2 "
8080212520	DN25 * 3 / 4 "	74.92	25.40	R3 / 4 "
8080214020	DN40 * 3 / 4 "	82.00	40.00	R3 / 4 "
8080214025	DN40 * 1 "	87.00	40.00	R1 "
8080214032	DN40 * 1 " 1/4 "	93.50	40.00	R1 " 1/4 "
8080215020	DN50 * 3 / 4 "	92.10	50.80	R3 / 4 "
8080215025	DN50 * 1 "	97.10	50.80	R1 "
8080215032	DN50 * 1 " 1/4 "	103.10	50.80	R1 " 1/4 "
8080215040	DN50 * 1 " 1/2 "	104.10	50.80	R1 " 1/2 "
8080216350	DN63 * 2 "	184.50	63.50	R2 "
8080218063	DN80 * 2 " 1/2 "	174.00	88.90	R2 " 1/2 "
