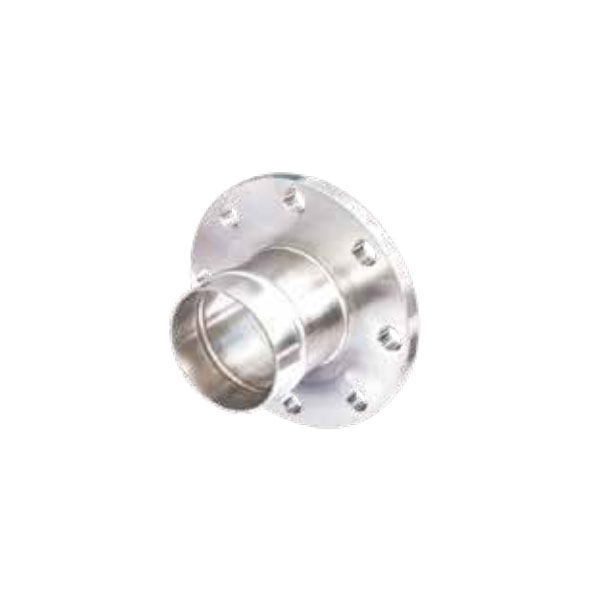

Isometric/reducer flange

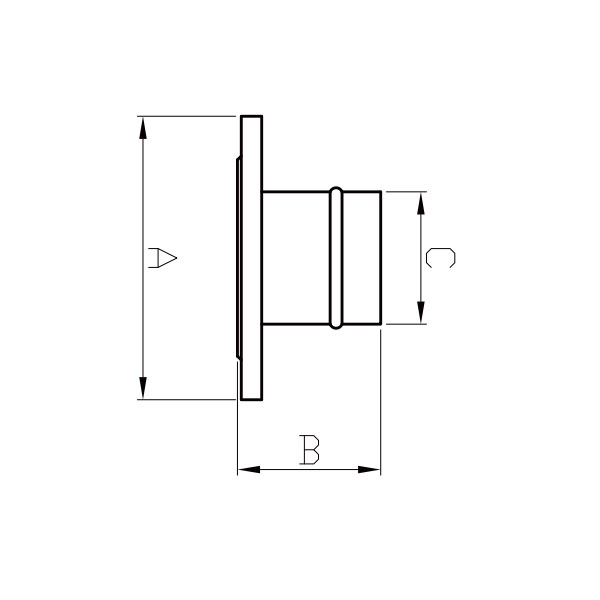

code	Size specifications	A	B	C
8097000040	DN40	140.00	82.20	40.00
8097000050	DN50	158.80	69.80	50.80
8097000063	DN63	174.50	81.20	63.50
8097000080	DN80	190.46	96.30	88.90
8097000100	DN100	210.00	92.70	108.00
8097000125	DN125	240.00	110.00	133.00
8097000150	DN150	275.00	115.00	148.00
8097000200	DN200	330.00	120.00	219.00
8026006350	DN63-50	174.50	92.00	158.80
8026008050	DN80-50	190.46	96.10	158.80
8026008063	DN80-63	190.46	96.50	174.50
8026010063	DN100-63	210.00	108.90	174.50
8026010080	DN100-80	210.00	111.00	190.46
8026125080	DN125-80	240.00	110.00	88.90
8026125100	DN125-100	240.00	110.00	108.00
